DT9205A Digital Multimeter – Compact & Smart for Electrical Checks

Overview

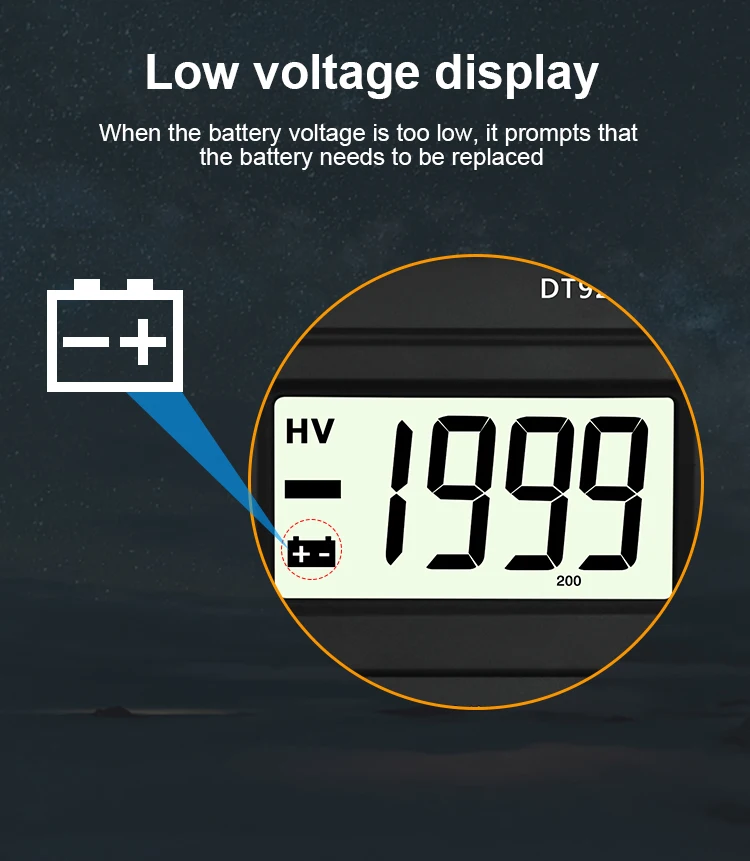

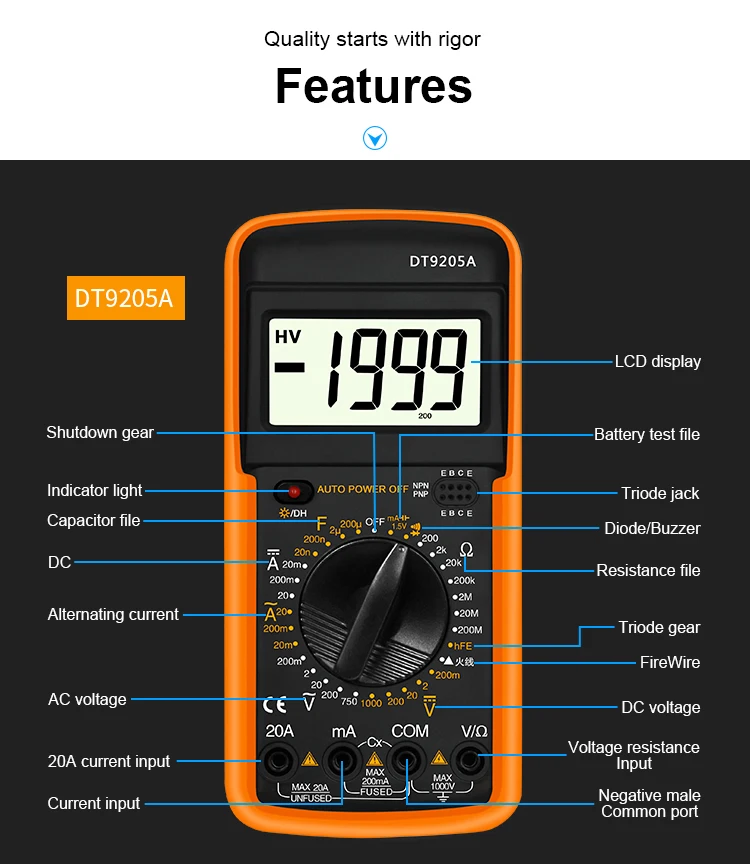

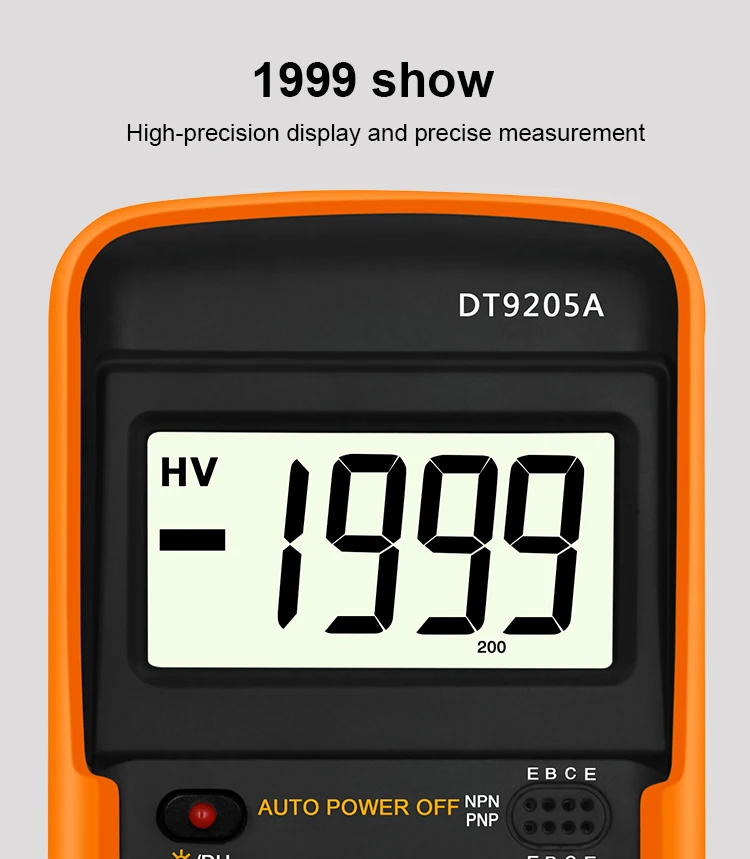

● The DT9205A meter is a hand-held 199 digits digital multimeter integrating voltmeter, ammeter and ohmmeter with high reliability and safety,and 2.7” LCD screen which provides a clear displaying for the better user experience,as such is easy to read and more practical than other multimeters.Also it’s an advanced multi tester ensure safe operation in CAT II 600V,designed to be used safely and accurately by electricians at work places or the people who need more capabilities than the standard measuring tool.It bring you not only practical, but also simple, convenient and fast. ●This meter can measure AC/DC voltage,DC/AC current,resistance and capacitance accurately.In addition,it has more functions,such as diodes measurement,transistors measurement,continuity detection,low battery reminder,auto power off and etc.,which is widely-used in home, school,office and factory.So it is really an ideal tool for beginners in electronic and electrical industry.

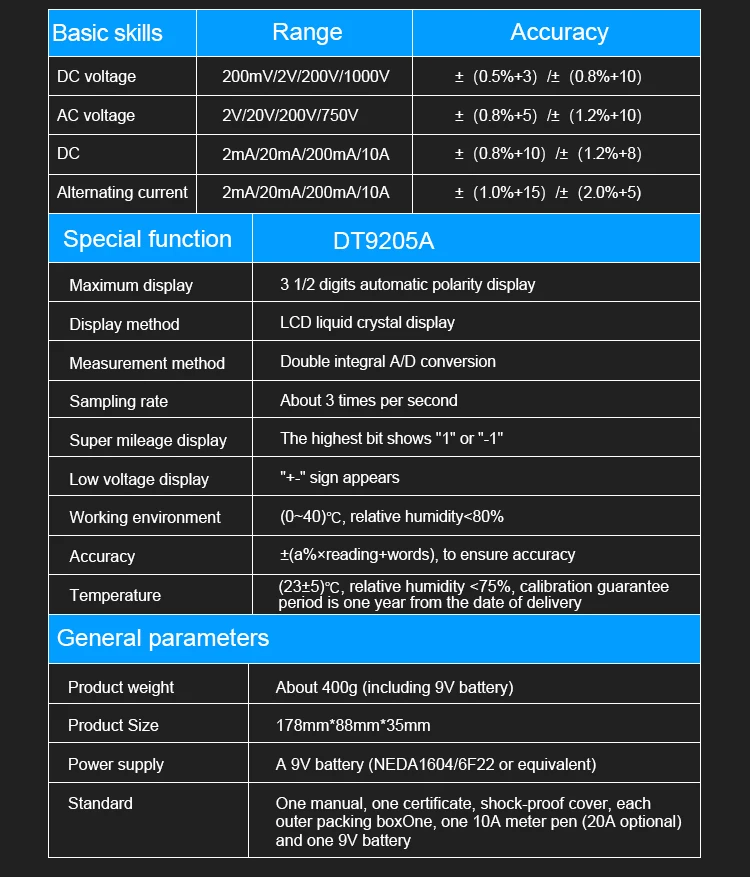

Range	Resolution	Accuracy
200mV	100μV	±(0.5%+2)
2V	1mV
20V	10mV
200V	100mV
1000V	1V	±(0.8%+2)

Range	Resolution	Accuracy
200mV	100μV	±(1.2%+3)
2V	1mV
20V	10mV	±(0.8%+3)
200V	100mV
1000V	1V	±(1.2%+3)

Range	Resolution	Accuracy
2mA	1μA	±(1.2%+2)
20mA	10μA
200mA	100μA	±(1.4%+2)
20A	10mA	±(2.0%+2)

Range	Resolution	Accuracy
2mA	1μA	±(1.2%+3)
20mA	10μA
200mA	100μA	±(1.8%+3)
20A	10mA	±(3.0%+7)

Range	Resolution		Accuracy
